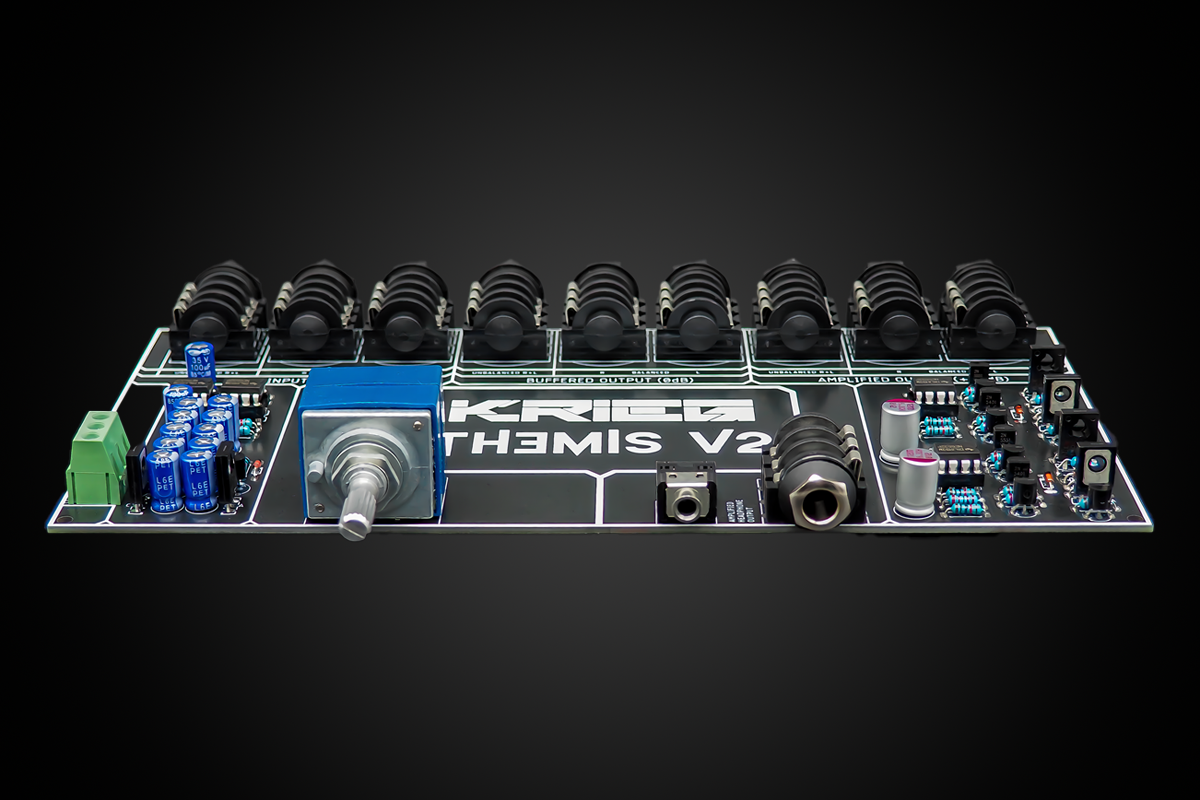

Themis V2: A full-analog universal buffer, converter, and powerful headphone amplifier. Building on the first Themis, it offers seamless unbalanced to balanced signal conversion, 0-gain buffer for amplifier inputs, and high-power headphone output (3.5W) with both 3.5mm and 6.3mm options. Features interchangeable op-amps, auto-regulated voltage, and precision ALPS step potentiometer for ultimate audio control.

Specs

ParameterValueUnit
Amplifier classAB
Pre mounted operational amplifierNE5532

Supply voltage typedual voltage
Minimum supply voltage+5, 0, -5Vdc
Recommended supply voltage+15, 0, -15Vdc
Maximum supply voltage (automatically regulated by the board if >12Vdc)+35, 0, -35Vdc

Program power (on all load impedances)1.5W
Maximum power (on all load impedances)3.5W
Standby power0.3W
Minimum raccomended supply current1A

Output gain+ 13dB

Minimum load impedance16Ohm
Nominal output current (+15Vdc, -15Vdc supply)0.95A

THD+N @ 1kHz | 32 Ohm | 1W0.001%
IMD THD | 32 Ohm | 1W0.002%

Slew rate (op-amp limited)9V/us

Output impedance @ 60 Hz | 32 Ohm3.5mOhm
Input impedance10kOhm

Bandwidth (-3dB)DC - 2MHz
Audio bandwidth linearity+- 0.01dB

SNR (non A-weight) @ 1kHz - 100W98dB
SNR (A-weight) @ 1kHz - 100W103dB

Inputs1 x unbalanced
2 x balanced
6.3mm (1/4") jack
Outputs (buffer)1 x unbalanced
2 x balanced
6.3mm (1/4") jack
Outputs (amplified)1 x unbalanced
2 x balanced
6.3mm (1/4") jack
Headphone outputs16.3mm (1/4") jack
13.5mm jack

Board dimensions 110 (H) x 220.5 (W)mm

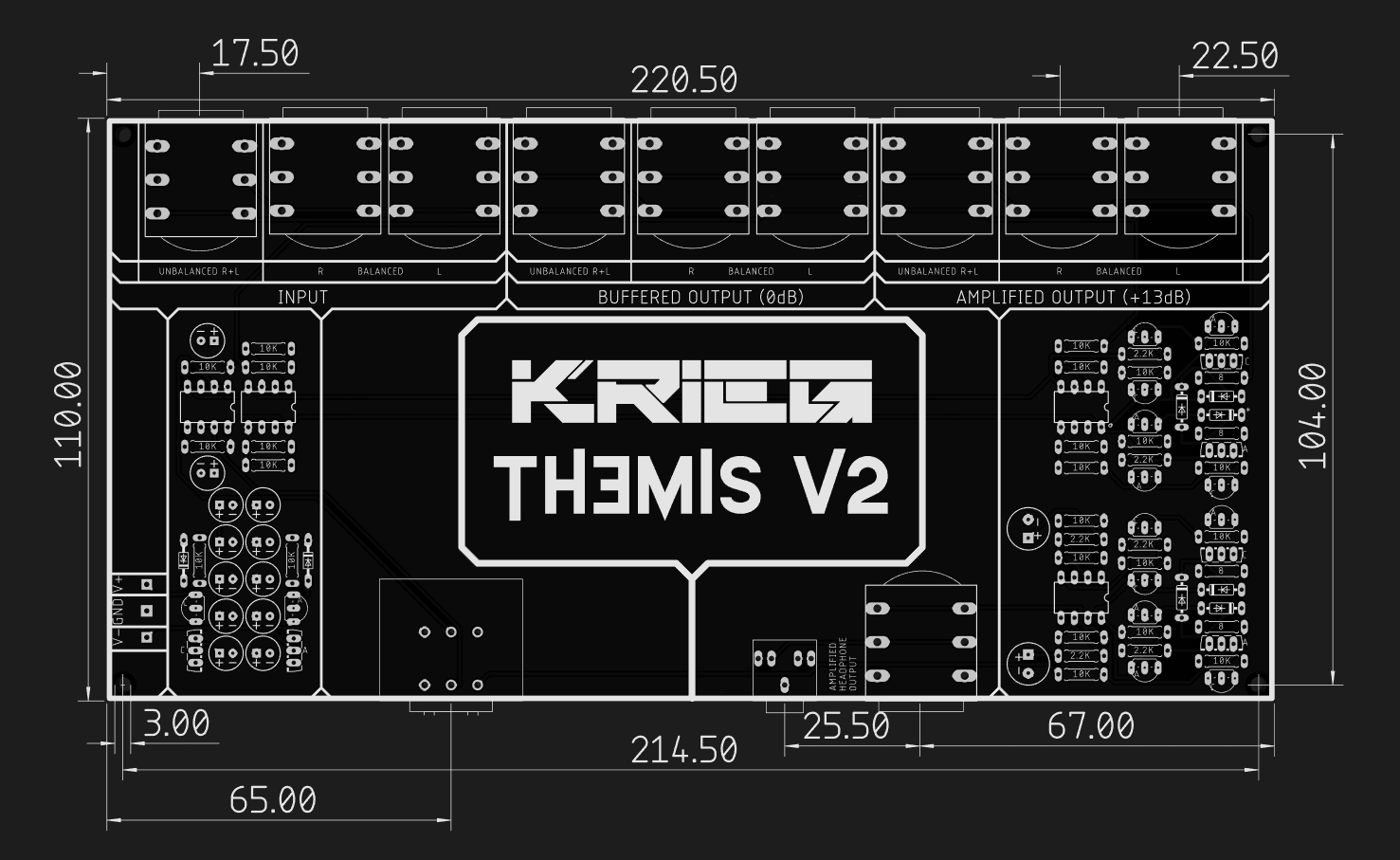

Board dimensions
